Table

This visualization fetches only the required dimensions from the database. You can also add a derived dimension using the expression builder to calculate the values.

Dimension Type

Select normal or derived dimension type for your column/dimension in the visualization table.

Alias

Enter the name for your column/dimension, which will appear on your dashboard.

Derived Formula

Select the column names from the dropdown which you want to use to calculate your new derived dimension.

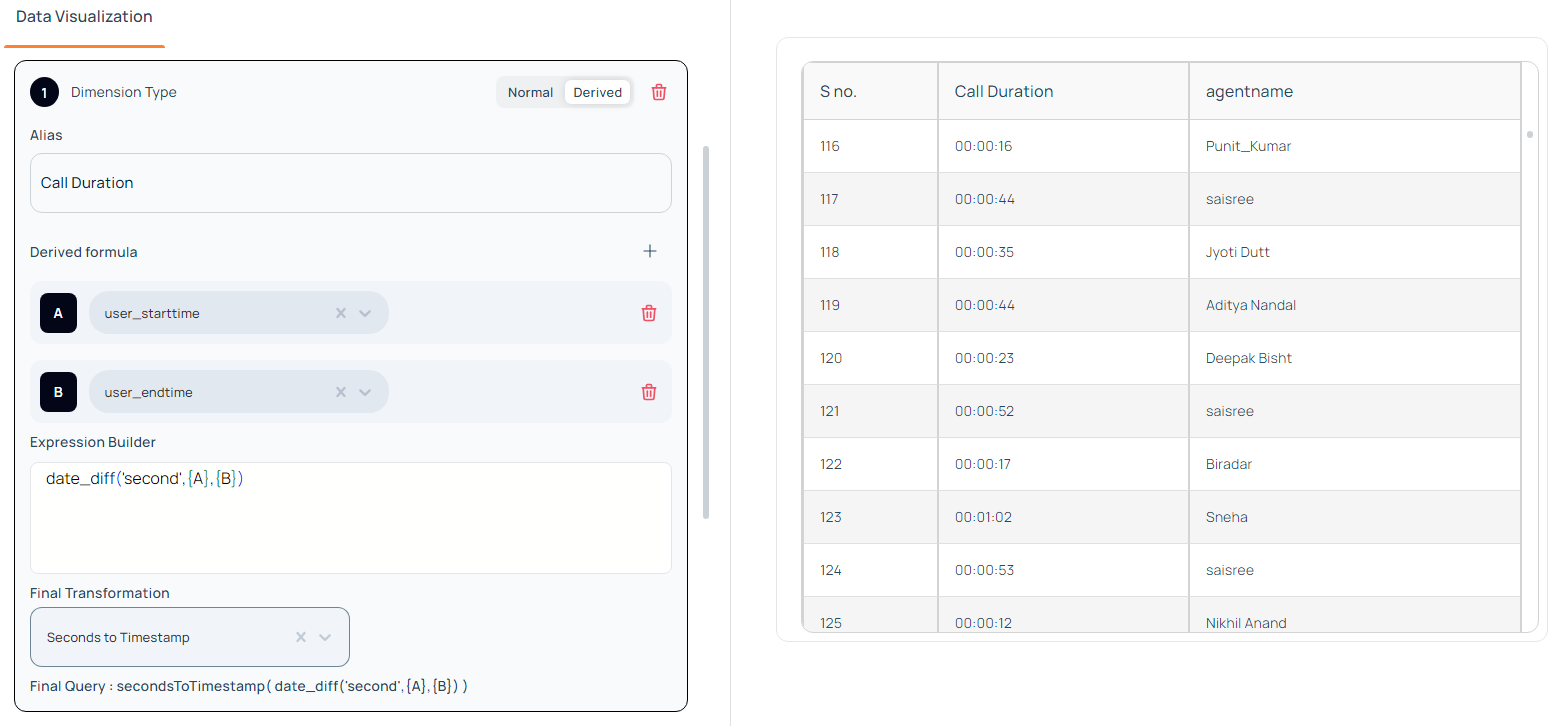

Expression Builder

Start typing the function you want to use and select it from the suggestions. Then, place the cursor inside the brackets and type the property name you selected in Properties as the function parameter for calculations. The aggregate function will be applied on the output of this expression builder.

The following options are available in the Expression Builder. Ci represents the attributes/properties selected by you

Arithmetic Functions

Function	Attribute Structure	Usage
sum()	(attribute)	sum(C1)
sumIf()	(attribute, filter)	sumIf(C1, conditions)
avg()	(attribute)	avg(C1)
avgIf()	(attribute, filter)	avgIf(C1, conditions)
count()	(attribute)	count(C1)
countIf()	(attribute, filter)	countIf(C1, conditions)
uniq()	(attribute)	uniq(C1)
uniqIf()	(attribute, filter)	uniqIf(C1, conditions)
min()	(attribute)	min(C1)
max()	(attribute)	max(C1)
least()	(attribute1, attribute2)	least(C1, C2)
greatest()	(attribute1, attribute2)	greatest(C1, C2)
date_diff()	(return type, attribute1, attribute2)	date_diff('second', C1, C2)

Operators

Operator	Action	Example Usage
+	Addition	uniq(C1) + uniq(C2)
-	Subtraction	uniq(C1) - uniq(C2)
/	Division	uniq(C1) / uniq(C2)
*	Multiplication	uniq(C1) * uniq(C2)

Numeric Transformations

Function	Description	Usage
abs()	Return the absolute value of a number	abs(C1)
toInt8()	Converts a value to an 8-bit integer	toInt8(C1)
toInt16()	Converts a value to an 16-bit integer	toInt16(C1)
toInt32()	Converts a value to an 32-bit integer	toInt32(C1)
toInt64()	Converts a value to an 64-bit integer	toInt64(C1)
toString()	Converts a value to a string	toString(C1)

Transformations

Function	Description	Usage
toTimeStamp()	Converts a value to timestamp	toTimeStamp(C1)
toWeekDay()	Converts a date to the corresponding day of the week	toWeekDay(C1)
toUTCHour()	Converts a time to its UTC Hour	toUTCHour(C1)
toMonth()	Converts a date to its corresponding month	toMonth(C1)
toDate()	Converts a value to a date format	toDate(C1)

Final Transformation

Choose how you want your final query result in the new derived column to be from second to timestamp, milliseconds to timestamp, timestamp, days, hour, month or date.

Custom Filters

You can filter the data in the final output on the dashboard according to your needs.

Choose whether to include data using the = operator or exclude it using the != operator. You can also use the regex operator and provide the regex formula.

View Chart

Click on View Chart to preview it before adding it to the dashboard.
